8760 Series Triple Adjustable (Piggyback Or Remote)
8760 Series Triple Adjustable (Piggyback Or Remote)
8760 Series Triple Adjustable (Piggyback Or Remote)

8760 Series Triple Adjustable (Piggyback Or Remote)

Regular price £1,381.91 £0.00 Unit price per

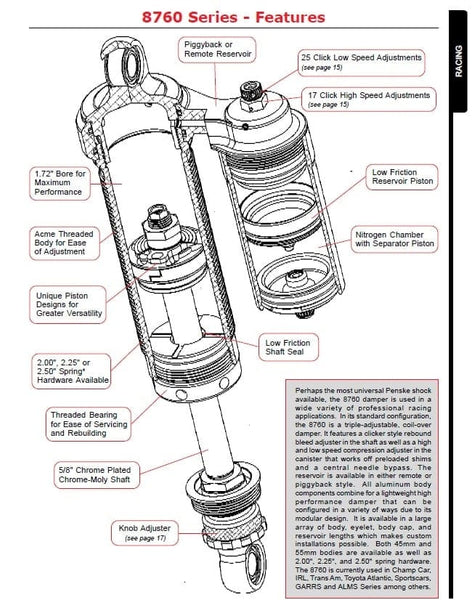

Perhaps the most universal Penske shock available, the 8760 is used in a wide variety of professional racing applications. In its standard configuration, the 8760 is a triple-adjustable, coil over damper. The 3 adjustments are comprised of a high-speed compression adjustment, a low-speed compression adjustment, and a single rebound adjustment. The high-speed compression adjustment works with preloaded shims on a piston face while the rebound and low-speed compression adjustments consist of a needle/seat arrangement for a bleed bypass. The reservoir is available in either integral (piggyback) or remote style (with a hose connecting the main shock body to the reservoir). All aluminium body components combine for a lightweight, high-performance damper that can be configured in a variety of ways due to its modular design. It is available in a large array of body, eyelet, body cap, and reservoir lengths which makes custom installations possible. Both 45mm and 55mm body sizes are available as well which permits the use of 2.00", 2.25", and 2.50" I.D. springs. The 8760 is currently used in BTCC among other series.

The Penske Advantage

  • Triple Adjustable / 25 Clicks Low Speed Compression / 17 Clicks High Speed Compression / 30 Clicks Rebound
  • Extended Lengths from 10.0" through 24.0" or Custom Lengths

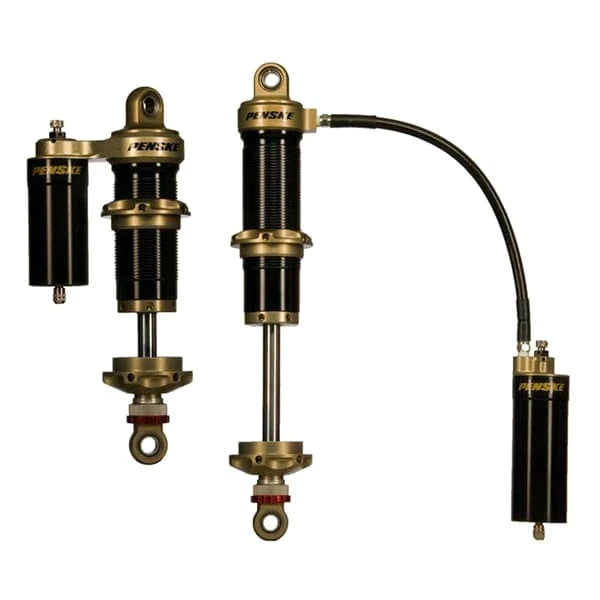

  • Piggyback or Remote Reservoir
  • 1/8" NPT, Banjo, or Banjo-Swivel Style Hose
  • 45mm or 55mm Bore Body
  • 2.00", 2.25", 2.50" Spring Hardware
  • Various Piston Options
  • Built to Customer Specifications
  • Custom-Valved for Driver Feel or Chassis Set-Up
  • Owner Rebuildable
  • Consistent Performance

100% Engineered, Manufactured, and Hand Built in the USA

**All shocks are hand built to order specifications. Please allow a minimum of 10 business days for processing; however lead times may be much longer depending on seasonality. For more information on specific product lead times, or if you require a specific delivery date, please inquire before ordering.**
